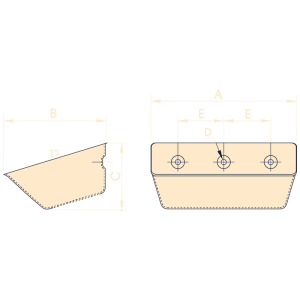

| N° | A mm | B mm | C mm | Trous / Holes | Capacité / Capacity | Godets / Buckets / mtr | Poids / Weight Kg | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nbr | D mm | E mm | Z2 (c) | 1 mm | 1.5 mm | 2 mm | |||||
| JET LIFT 13-120 | 134 | 67 | 67 | 2 | 8.50 | 70 | 0.45 | 18.50 | 0.23 | ||
| JET LIFT 18-140 | 185 | 90 | 90 | 2 | 8.50 | 100 | 1.15 | 14 | 0.45 | ||
| JET LIFT 23-165 | 238 | 102 | 102 | 2 | 8.50 | 120 | 1.95 | 12.50 | 0.84 | ||
| JET LIFT 28-165 | 290 | 108 | 108 | 3 | 8.50 | 90 | 2.89 | 11.40 | 1.08 |
